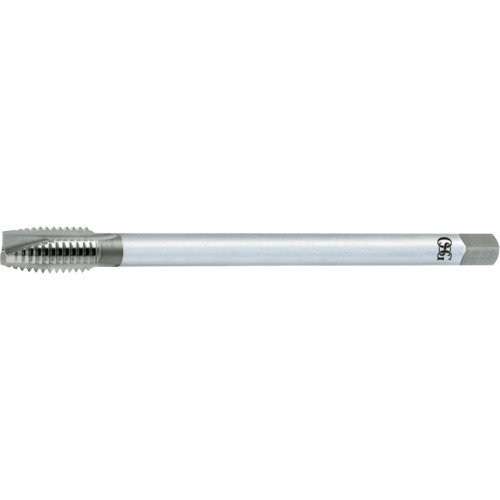

3/8-24X6 H3 3FL S/O SP PT PULLEY
| Thread Diameter Size (TDZ) | 3/8″ | Thread Tolerance Class (TCTR) | H3 |
| Threads per Inch (TPI) | 24 | Chamfer | 4P-4.5P |
| Thread Standard | NF | Coating | Black Oxide |
| Overall Length (OAL) | 6″ | End Shape | Spiral Point |
| Usable Length (LU) | 1.413″ | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.38″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | 917 |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Thread Size | 3/8″ - 24 |
| Cutting Edge Material | HSS |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
6.55000
Package Width
.55000
Package Height
.45000
Package Weight
.1800
