XNUWB 13-12.15-1.35 IC908
DIN138 (tolerance C11) inserts for keyway broaching on lathe and milling machines.

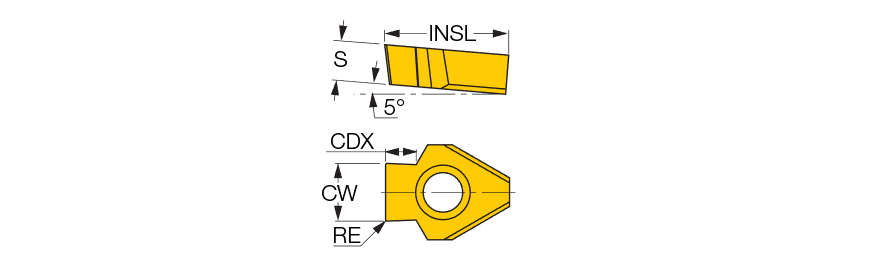

| Tool Type | Groove-Turn Utility Inserts | Internal/External | External |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.201″ | Insert Length (INSL) | 0.795″ |
| Cutting Width (CW) | 0.478″ | Insert Thickness (S) | 0.209″ |
| Cutting Edge Material | Carbide | Corner Radius (RE) | 0.0531″ |
| Grade | IC908 | Application | | Ext. Broaching | Int. Broaching | |
| Coating | TiAlN | Body Material | Carbide |
Product Features
| Family Description | DIN138 (tolerance C11) inserts for keyway broaching on lathe and milling machines. | Country of Origin | Israel |
| Remarks | Typical conditions: Vc = 160-315 inch/min, ap = .0008- .0031 inch |
Shipping Info
Package Weight
0.035
