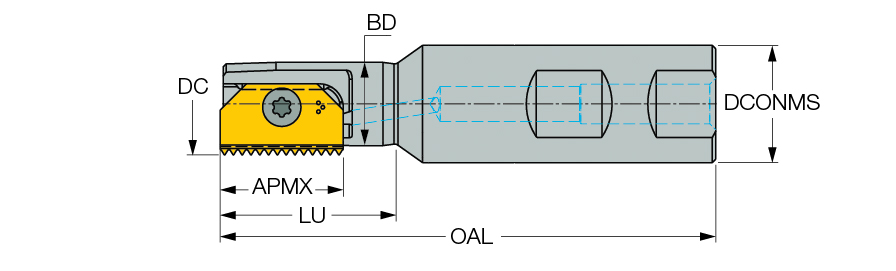

| Cutting Diameter (DC) | 1-3/4″ | Application | | External Thread Milling | Internal Thread Milling | |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Cutting Position | External |
| Depth of Cut Maximum (APMX) | 1.575″ | Tool Type | Indexable thread mills |
| Overall Length (OAL) | 6″ | Measurement Type | Inch |
| Flute Count (NOF) | 1 | Grade | 3102179 |
| Shank Type | Weldon | Connection Code Machine Side (CCMS) | Weldon |
| Body Material | Steel | Body Diameter (BD) | 1.38″ |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features

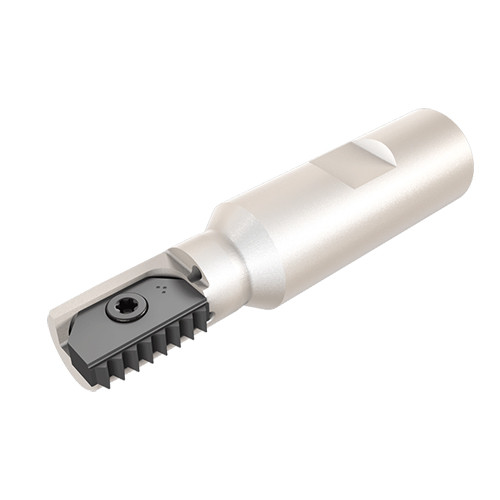

| Family Description | Indexable threading endmills with Weldon shank and coolant holes | Country of Origin | Israel |
| Remarks | Tool cutting diameter should not exceed 2/3 of thread bore diameter All endmills are equipped with a bore for internal coolant |
Shipping Info
Additional Fees and Notes
0
Package Weight
2.784
