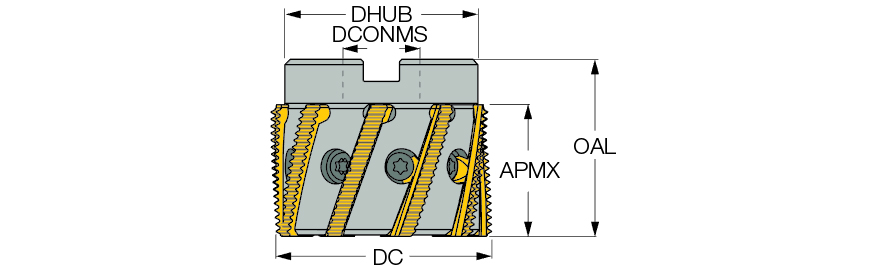

| Cutting Diameter (DC) | 63 mm | Application | | External Thread Milling | Internal Thread Milling | |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Cutting Position | External |
| Depth of Cut Maximum (APMX) | 38 mm | Tool Type | Indexable thread mills |
| Overall Length (OAL) | 50 mm | Measurement Type | Metric |
| Flute Count (NOF) | 9 | Grade | 3102179 |
| Body Material | Steel | Thread Type (TTP_DF2) | INT |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features

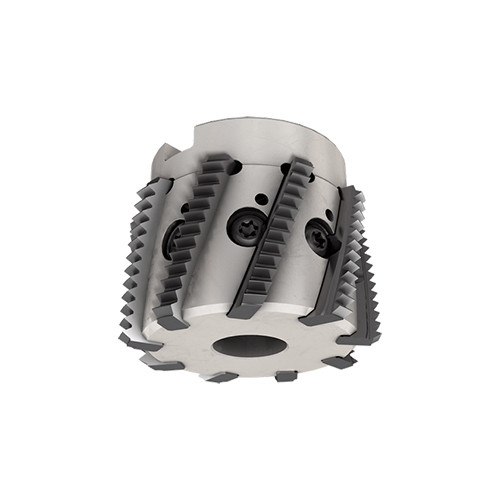

| Family Description | Shell mills with coolant holes for helical threading inserts | Country of Origin | Israel |
| Remarks | ISCAR can provide special contour inserts on request For adaptation click on More Info. |
Shipping Info
Package Weight
1.554
