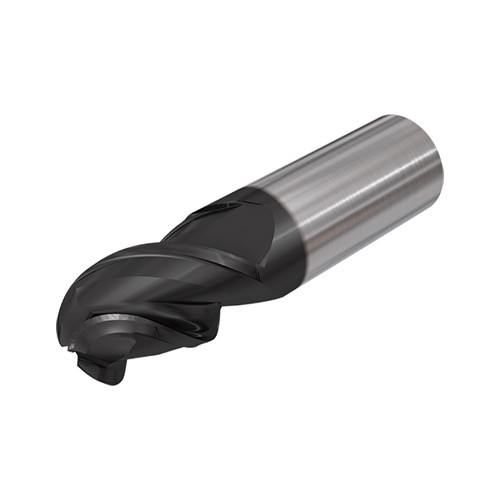

EBAI-B3 .187-.562C-2EC IC1508
DLC coated 3 flute ball nose mills for machining Aluminum and other non-ferrous materials.

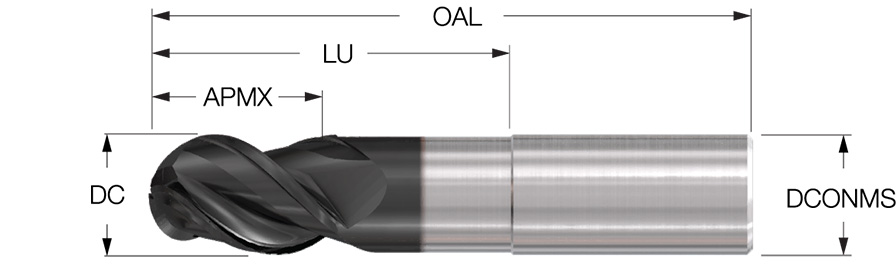

| Cutting Diameter (DC) | 0.187″ | Application | | Profiling | |
| Connection Diameter Machine Side (DCONMS) | 0.187″ | Corner Radius (RE) | 0.0938″ |
| Depth of Cut Maximum (APMX) | 0.562″ | Neck Diameter (DN) | 0.177″ |
| Overall Length (OAL) | 2″ | Body Half Taper Angle (BHTA) | 15 Degrees |
| Cutting Edge Material | Carbide | Grade | IC1508 |
| Coating | DLC | Tool Type | Solid carbide center cutting endmills 90° |
| Flute Count (NOF) | 3 | End Shape | Square |
| Shank Type | Round | Body Material | Carbide |
| Usable Length (LU) | 0.057″ | Decimal Equivalent | 0.187″ |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Measurement Type | Inch |
Product Features
| Family Description | DLC coated 3 flute ball nose mills for machining Aluminum and other non-ferrous materials. | Country of Origin | USA |
