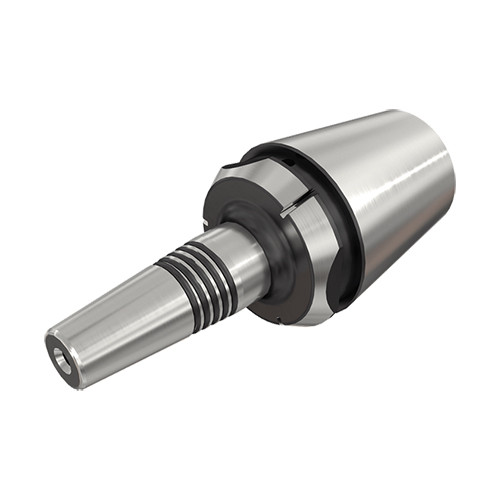

ER32 SRK 5/16X1.500 JET2
Shrink Fit Holder ; 0.312″ Hole Dia. ; 3.075″ OAL ; Series SHRINK

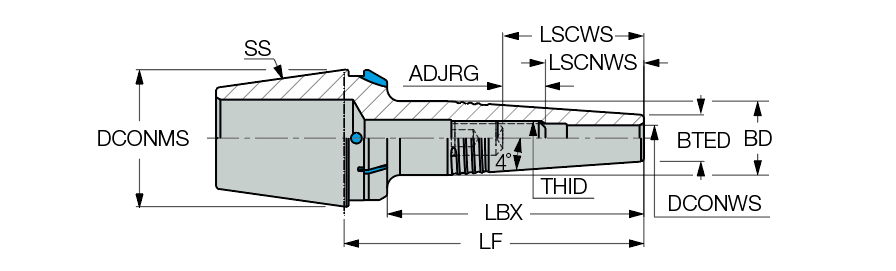

| Connection Diameter Workpiece Side (DCONWS) | 0.312″ | Clamping Length Workpiece Side (LSCWS) | 1.22″ |
| Shank Size (SS) | ER32 | Series/List # | SHRINK |
| Body Length (LB) | 1.44″ | Measurement Type | Inch |
| Body Length Maximum (LBX) | 1-1/2″ | Tool Type | Accessories and Devices |
| Overall Length (OAL) | 3.075″ | Body Material | Steel |
Product Features
| Family Description | SHRINKIN thermal shrinking chuck with three internal cooling jets and an integral ER collet. To be used for carbide tool only. | Country of Origin | Israel |
| Remarks | For carbide tools only For through tool coolant, preset screw must be removed |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.432
