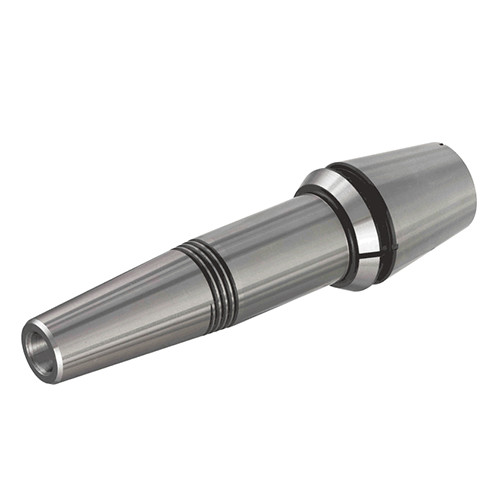

ER32 SRK 10X60 JET2
SHRINKIN thermal shrinking chuck with three internal cooling jets and an integral ER collet. To be used for carbide tool only.

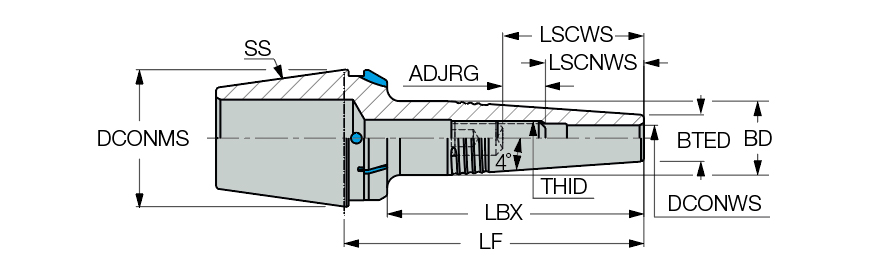

| Connection Diameter Machine Side (DCONMS) | 32 mm | Clamping Length Workpiece Side (LSCWS) | 36 mm |
| Connection Diameter Workpiece Side (DCONWS) | 10 mm | Series/List # | SHRINK |
| Shank Size (SS) | ER32 | Measurement Type | Metric |
| Body Length (LB) | 44.5 mm | Tool Type | Spring Collets |
| Body Length Maximum (LBX) | 60 mm | Body Material | Steel |
| Overall Length (OAL) | 100 mm |
Product Features
| Family Description | SHRINKIN thermal shrinking chuck with three internal cooling jets and an integral ER collet. To be used for carbide tool only. | Country of Origin | Israel |
| Remarks | For carbide tools only For through tool coolant, preset screw must be removed |
Shipping Info
Package Weight
0.624
