TPHN M-10X1.5-W HS
DIN 13 HSS hand tap set for ISO metric coarse threads. The set includes 3 types of taps for the first operation, secondoperation, and bottoming operation.

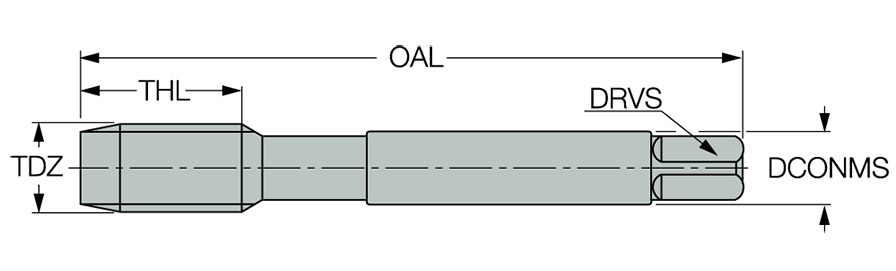

| Thread Diameter Size (TDZ) | M10 | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Deep Through Hole | Taps for Short Blind Hole | Taps for Short Through Hole | |
| Standard | DIN 352 | Measurement Type | Inch |
| Tool Type | Hand Taps | Thread Cutting Part Length (THL) | 0.906″ |
| Overall Length (OAL) | 2.756″ | Grade | HS |
| Connection Diameter Machine Side (DCONMS) | 0.276″ | Thread Pitch (TP) | 1.5 mm |
| Flute Count (NOF) | 3 | Thread Size | M10 × 1.5 |
| Cutting Edge Material | HSS | Body Material | HSS |
Product Features
| Family Description | DIN 13 HSS hand tap set for ISO metric coarse threads. The set includes 3 types of taps for the first operation, secondoperation, and bottoming operation. | Country of Origin | Hungary |
| Remarks | NOTE: Each set contains 2 or 3 taps |
Shipping Info
Package Weight
0.163
