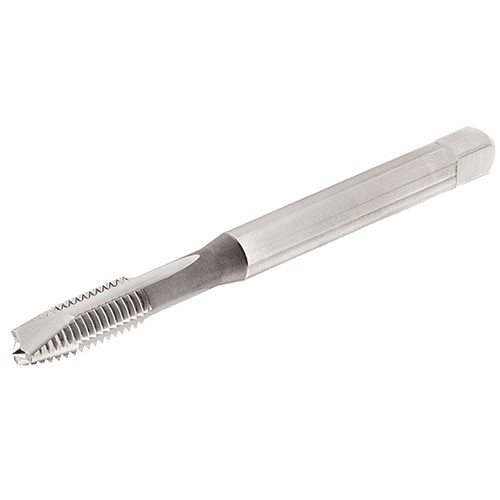

TPGN UNC 5/8-11-M HETI
HSSE 5% Co gun point machine taps - unified coarse threads for a wide range of materials

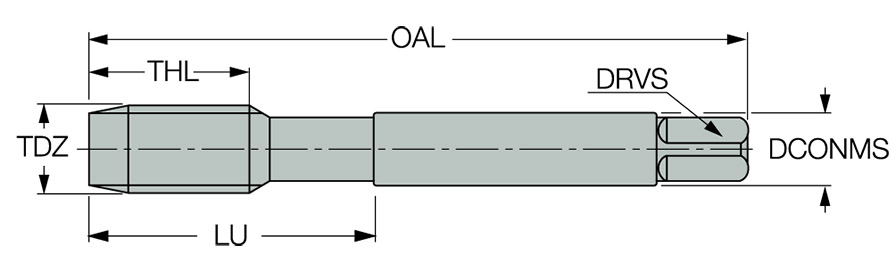

| Thread Diameter Size (TDZ) | UNC 5/8 | Standard | DIN 376 |
| Threads per Inch (TPI) | 11 | Tool Type | Machine Through Hole Taps |
| Overall Length (OAL) | 4.331″ | Coating | TiN |
| Thread Cutting Part Length (THL) | 1.024″ | Drive Size (DRVS) | 0.354″ |
| Connection Diameter Machine Side (DCONMS) | 0.472″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Grade | HETI |
| Application | | Taps for Deep Through Hole | Taps for Short Through Hole | | Thread Size | UNC 5/8 - 11 |
| Cutting Edge Material | HSS | Body Material | HSS |
Product Features
| Family Description | HSSE 5% Co gun point machine taps - unified coarse threads for a wide range of materials | Country of Origin | Hungary |
