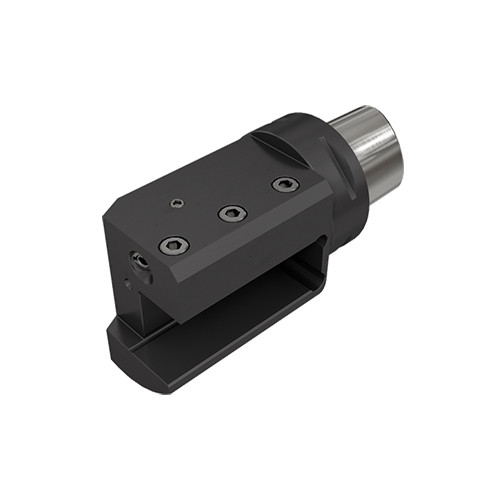

C8 ASHR 1 1/4 1
Holders with CAMFIX (ISO 26623-1 standard) exchangeable shanks for external square-shank tools.

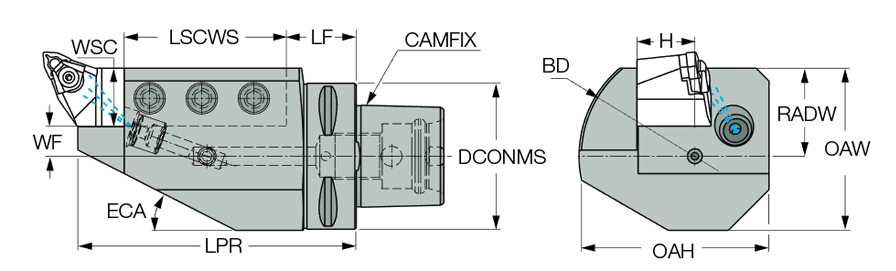

| Protruding Length (LPR) | 5.512″ | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Connection Diameter Machine Side (DCONMS) | 3.15″ | Measurement Type | Inch |
| Shank Width (B) | 1-1/4″ | Weight of Item (WT) | 11.78 Lbs |
| Body Diameter (BD) | 4.331″ | Body Material | Steel |
| Body Length (LB) | 1.378″ | Overall Height (OAH) | 3.43″ |
| Functional Width (WF) | 0.433″ | Overall Length (OAL) | 7.402″ |
| Shank Size (SS) | 80 | Overall Width (OAW) | 3.15″ |
| Coolant Supply Property (CSP) | Through Hole |
Product Features
| Family Description | Holders with CAMFIX (ISO 26623-1 standard) exchangeable shanks for external square-shank tools. | Country of Origin | Israel |
Shipping Info
Package Weight
12.324
