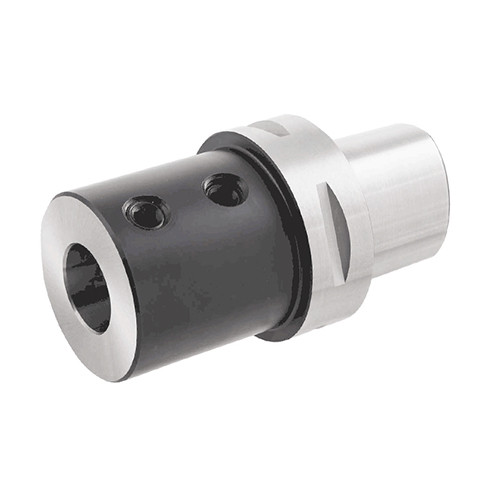

C5 ADI 12
Holders with CAMFIX (ISO 26623-1 standard) exchangeable shanks for boring bars.

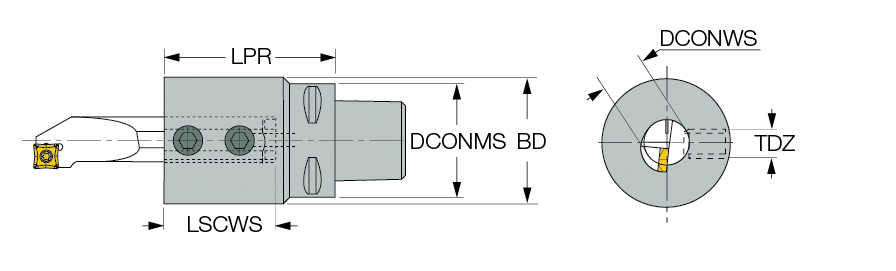

| Protruding Length (LPR) | 60 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 12 mm | Weight of Item (WT) | 0.72 Kg |
| Body Diameter (BD) | 36 mm | Body Material | Steel |
| Shank Size (SS) | 50 | Overall Length (OAL) | 90 mm |
| Coolant Supply Property (CSP) | Through Hole |
Product Features
| Family Description | Holders with CAMFIX (ISO 26623-1 standard) exchangeable shanks for boring bars. | Country of Origin | Israel |
| Remarks | Use the tools with AD suffix Regular tools should be shortened |
Shipping Info
Package Weight
1.709
