C4 MAHPD
Perpendicular holders with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks, carrying MODULAR-GRIP adapters for parting, grooving, turning and facing.

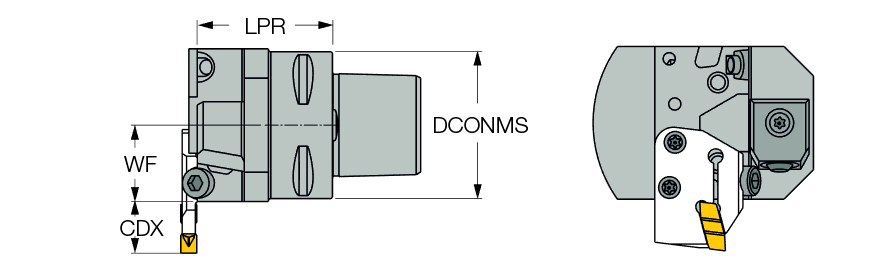

| Protruding Length (LPR) | 1.811″ | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Measurement Type | Inch |
| Functional Width (WF) | 0″ | Weight of Item (WT) | 1.67 Lbs |
| Shank Size (SS) | 40 | Body Material | Steel |
| Coolant Supply Property (CSP) | Through Hole | Overall Length (OAL) | 2.87″ |
Product Features
| Family Description | Perpendicular holders with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks, carrying MODULAR-GRIP adapters for parting, grooving, turning and facing. | Country of Origin | Israel |
Shipping Info
Additional Fees and Notes
0
Package Weight
1.913
Related Documentation

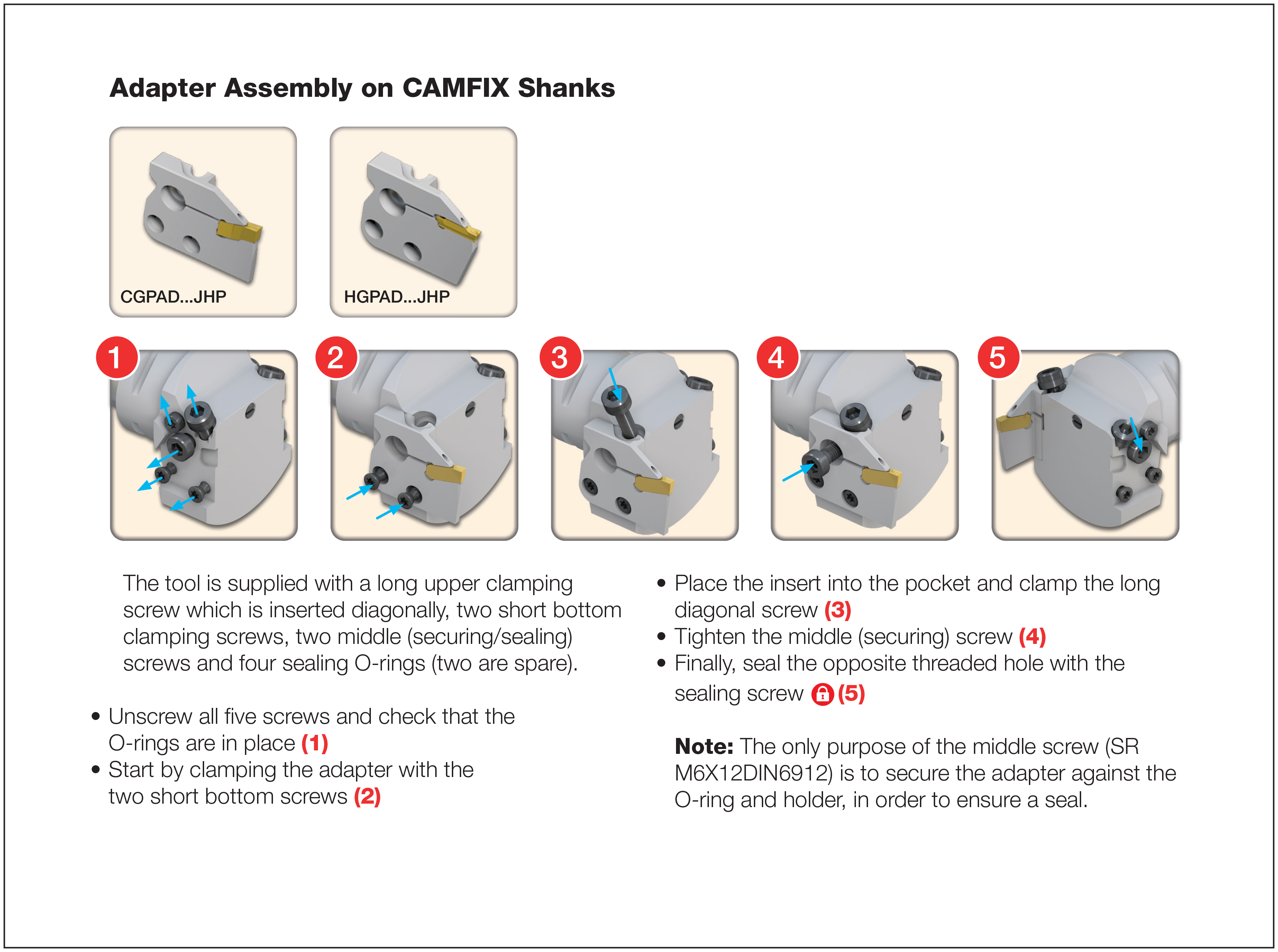

Screw SR14-519 for DGAD, HGAD and PCADR/L adapters. Supplied in the attached plastic bag. Screw SR M6X20-XT for CGPAD, HGPAD, TGPAD and FGPAD adapters. Used to prevent chips from entering the upper locking screw hole of adapter above. Supplied with the tools in the plastic bag.
