E90AC D1.00-.75W1.0
Drilling endmills carrying APKT/ADKT inserts.
| Application | | Counter Boring | Drill Mill | Shouldering | Slotting | | Cutting Depth | 1.97″ |
| Cutting Item Count (CICT) | 3 | Master Insert Identification (MIID) | APKT 1003PDR-HM |

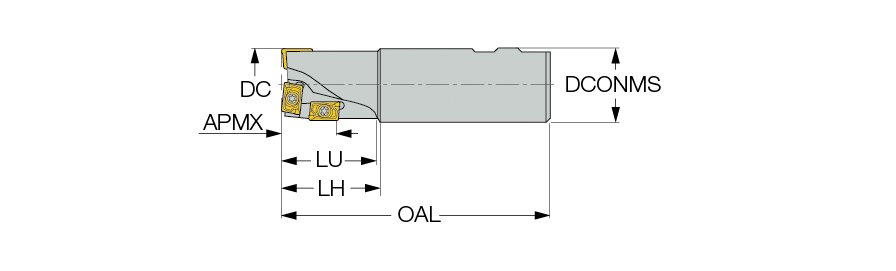

| Depth of Cut Maximum (APMX) | 3/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 1″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Flute Count (NOF) | 1 | Body Material | Steel |
| Overall Length (OAL) | 4.33″ | Tool Type | 90° indexable endmills |
| Cutting Length | 3/4″ | Connection Code Machine Side (CCMS) | Weldon |
| Number of Teeth | 16 |
Product Features
| Family Description | Drilling endmills carrying APKT/ADKT inserts. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
Shipping Info
Package Weight
0.840
Related Documentation
Insert for E90AC D1.00 APKT 1003, for E90AC D1.25-D1.50 AD..1505 and XPMT 1004, for E90AC D2.00 and D50 AD..1505
