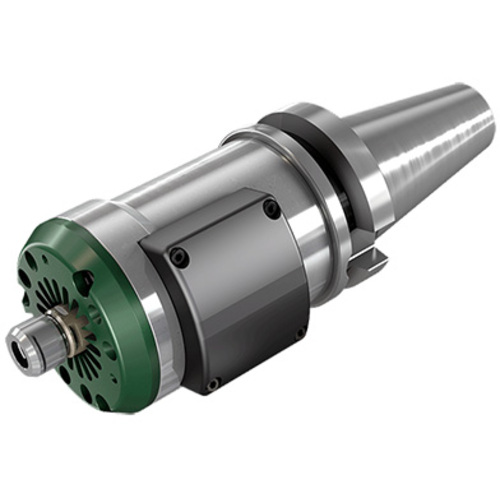

TJSGJETBT30
Coolant driven high speed compact spindles for small diameter tools on limited RPM machines. Can be used for semi finish and finish machining applications such as milling, drilling and grinding.

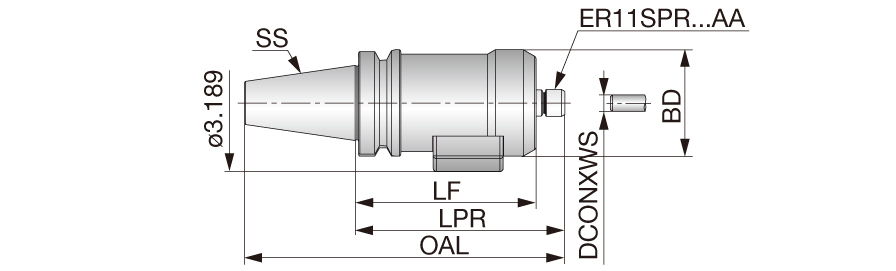

| Shank Size (SS) | BT30 | Measurement Type | Inch |
| Functional Length (LF) | 4.882″ | Collet Size | ER11 |
| Protruding Length (LPR) | 5.551″ | Application | | Tapered shape interface | |
| Overall Length (OAL) | 7.441″ | Connection Diameter Machine Side (DCONMS) | 1.906″ |
| Body Diameter (BD) | 2.48″ | Body Material | Steel |
Product Features
| Family Description | Coolant driven high speed compact spindles for small diameter tools on limited RPM machines. Can be used for semi finish and finish machining applications such as milling, drilling and grinding. | Country of Origin | ISRAEL |
| Remarks | Coolant pressure through machine spindle: Min. 2 MPa / Max. 4 MPa Min. flow rate: 12 l/min Max. tool shank diameter: 7.0 mm RPM range: 35,000 55,000 RPM (These are approximate RPM values depending on coolant pressure, flow rate, and type.) |
Shipping Info
Package Weight
0.000
