HSKA63SRK6X50

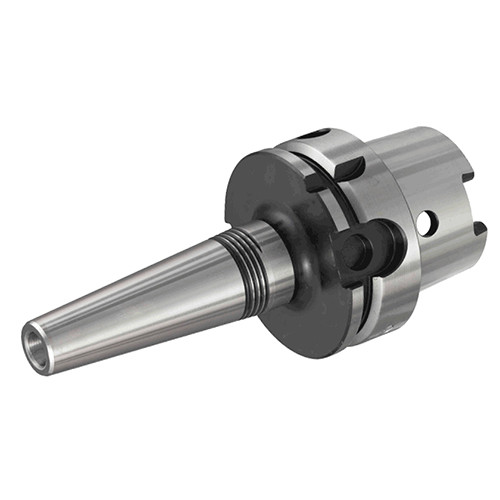

TungShrink thermal shrinking holder for carbide shank with HSK-A shank

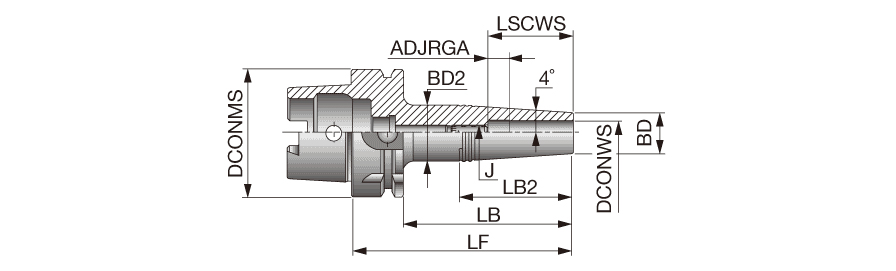

| Connection Diameter Machine Side (DCONMS) | 63 mm | Shank Type | Round |
| Connection Diameter Workpiece Side (DCONWS) | 6 mm | Application | | Face contact interface | |
| Shank Size (SS) | 63. | Thread Designation Inside (THID) | M8 |
| Body Length (LB) | 50 mm | Clamping Length Workpiece Side (LSCWS) | 76 mm |
| Body Diameter (BD) | 11 mm | Measurement Type | Metric |
| Body Diameter_2 (BD_2) | 18 mm | Tool Type | HSK |
| Body Taper End Diameter (BTED) | 108 mm | Body Material | Steel |
| Overall Length (OAL) | 76 mm |
Product Features
| Family Description | TungShrink thermal shrinking holder for carbide shank with HSK-A shank | Country of Origin | ISRAEL |
Shipping Info
Package Weight
1.631
