JBBS22-7-L100C
Milling Chuck Sleeve ; 0.276″ Hole Dia. ; 0.866″ Shank Dia. ; 3.937″ OAL ; 0.689″ Body Dia.

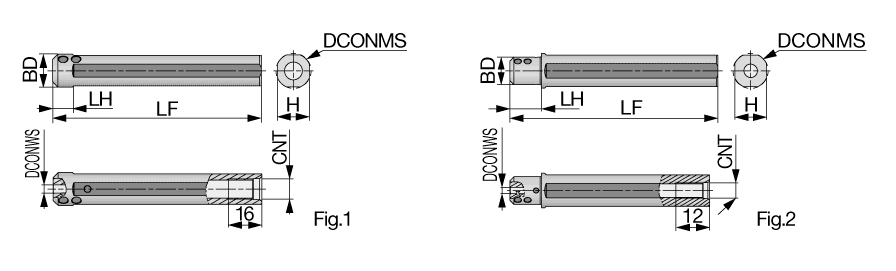

| Connection Diameter Machine Side (DCONMS) | 0.866″ | Application | | Accessories | Straight shape | |
| Connection Diameter Workpiece Side (DCONWS) | 0.276″ | Tool Type | Square Shanks |
| Body Diameter (BD) | 0.689″ | Measurement Type | Inch |
| Overall Length (OAL) | 3.937″ | Body Material | Steel |
| Head Length (LH) | 0.787″ |
Product Features
| Family Description | Sleeve for internal coolant supply | Country of Origin | Israel |
Shipping Info
Package Weight
0.514
