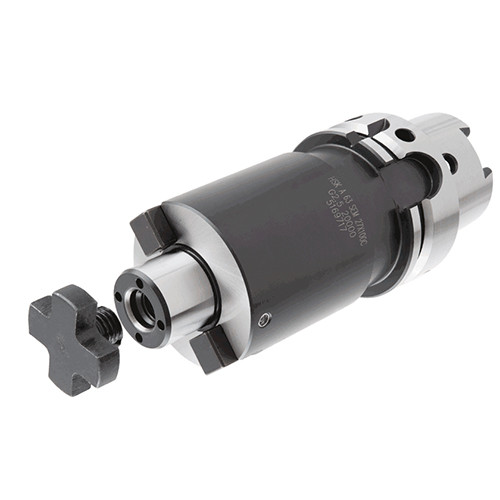

HSK A100 SEM32X78X60C
Shell Mill Holder; 100 mm Shank Dia. ; 32 mm Hole Dia. ; 78 mm Body Dia. ; 60 mm Body Length ; 100 Shank Size
| Connection Diameter Machine Side (DCONMS) | 100 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Workpiece Side (DCONWS) | 32 mm | Clamping Length Workpiece Side (LSCWS) | 24 mm |
| Shank Size (SS) | 100 | Tool Type | HSK |
| Functional Length (LF) | 60 mm | Measurement Type | Metric |
| Body Length (LB) | 60 mm | Body Material | Steel |
| Body Diameter (BD) | 78 mm | Connection Code Machine Side (CCMS) | HSK |
Product Features

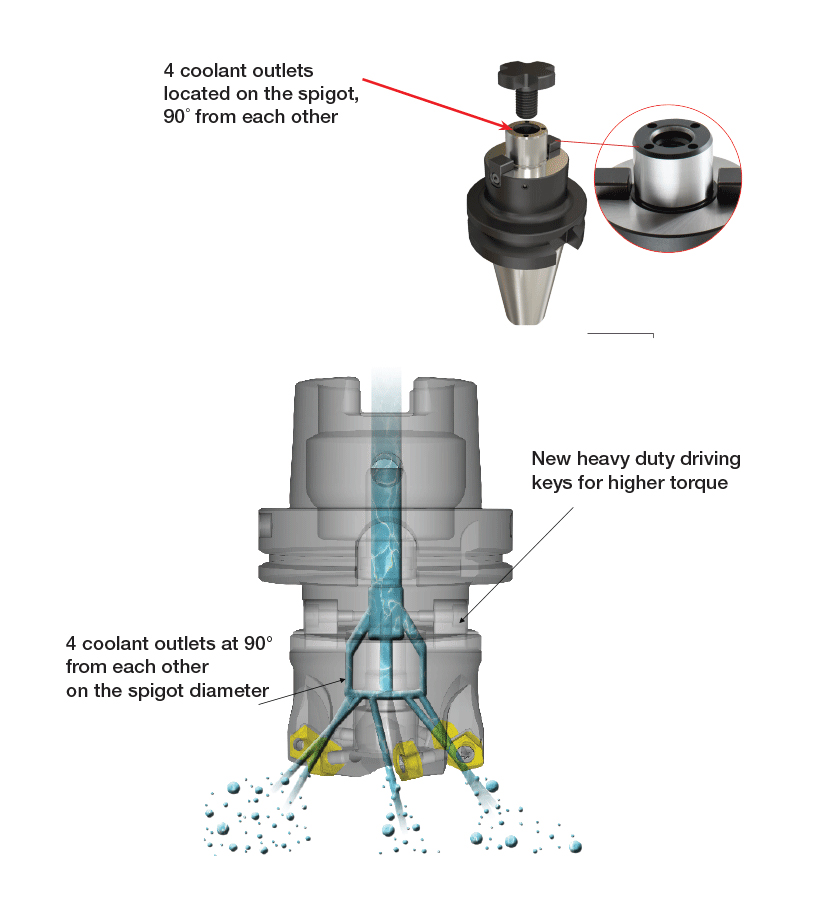

| Family Description | Shell mill holders with coolant holes and DIN69893 form A HSK tapered shanks. Symmetrical design, dynamically balanced for high RPM machining. | Country of Origin | Italy |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). |
Shipping Info
Package Weight
7.579
