| Connection Diameter Machine Side (DCONMS) | 2.48″ | Body Length Maximum (LBX) | 3-1/4″ |
| Connection Diameter Workpiece Side (DCONWS) | 1/8″ | Measurement Type | Inch |
| Body Diameter (BD) | 0.846″ | Tool Type | HSK |
| Body Taper End Diameter (BTED) | 0.394″ | Body Material | Steel |
| Protruding Length (LPR) | 4.276″ | Connection Code Machine Side (CCMS) | HSK |
Product Features

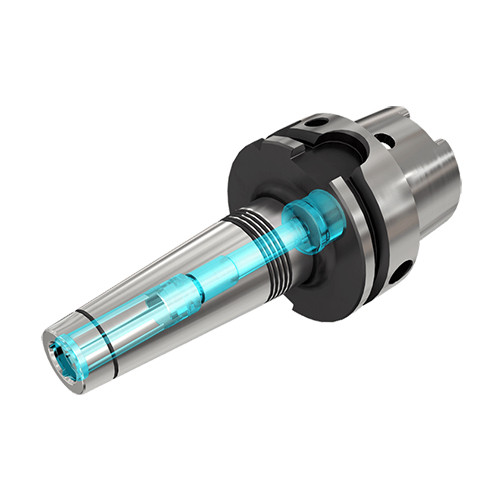

| Family Description | Thermal Shrink Chucks with HSK DIN69893 Form A tapered shank and jet coolant grooves along the shank bore, suitable for solid carbide tools with h6 tolerance. | Country of Origin | Israel |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). For solid carbide tools Preset screw CX allows supply of coolant via JET channels - not to be removed! For shank dimensions click on More Info |
Shipping Info
Package Weight
1.850
