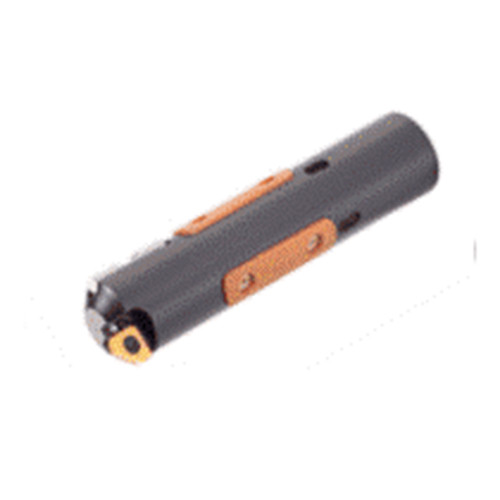

ISC-IA 1.457-1.574
Deep single tube counterbores with a through hole, internal single-start thread Connection and adjustable diameter. Each item represents a diameter range. For a specific head diameter, an order form should be filled out.

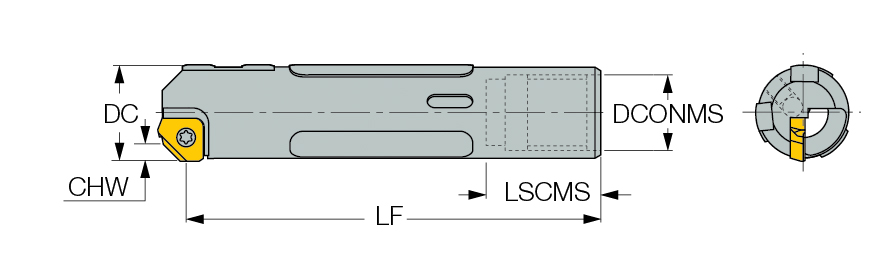

| Application | | Deep Drilling | | Connection Thread Size (Ts) | TS-O15 |
| Connection Diameter Machine Side (DCONMS) | 1.181″ | Cutting Diameter Minimum (DCN) | 1.457″ |
| Tool Type | Deep Hole / Gun Drill | Cutting Diameter Maximum (DCX) | 1.574″ |
| Shank Length (LS) | 1.575″ | Measurement Type | Inch |
| Overall Length (OAL) | 5.315″ | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Deep single tube counterbores with a through hole, internal single-start thread Connection and adjustable diameter. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | Country of Origin | Japan |
| Remarks | For quotation form and user, guide click on More Info. |
