RM-SET31.000H6T-B-C25S

Single-edged indexable reamers for through holes.

Item # ISC 4445269

UNSPSC: 23241611

Brand: Iscar

MFG#: 4445269

UPC #: 7291075222760

Alternate MFG #: 04445269

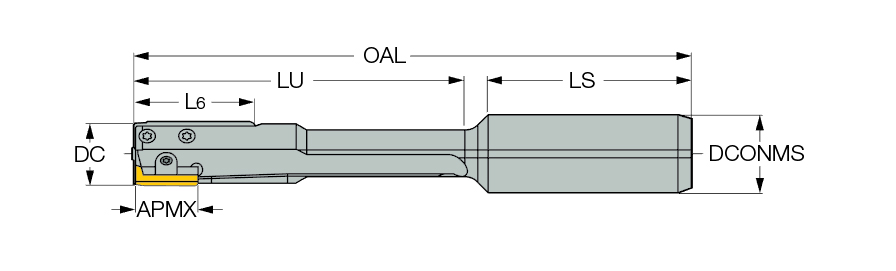

Cutting Diameter (DC)	31 mm	Overall Length (OAL)	221 mm
Connection Diameter Machine Side (DCONMS)	25 mm	Shank Length (LS)	56 mm
Application	\| Stacked Plates \| Through & Axial Groove \| Through & Perpendicular Holes \| Through & Radial Groove \| Through Hole \|	Body Material	Steel
Usable Length (LU)	160 mm	Tool Type	Indexable Reaming Tools
Insert Seat Size Code (SSC)	4.0	Measurement Type	Metric
Depth of Cut Maximum (APMX)	22.5 mm

Product Features

Family Description	Single-edged indexable reamers for through holes.	Country of Origin	Israel
Remarks	For user guide and cutting conditions, click on More Info

Package Weight

0.220
