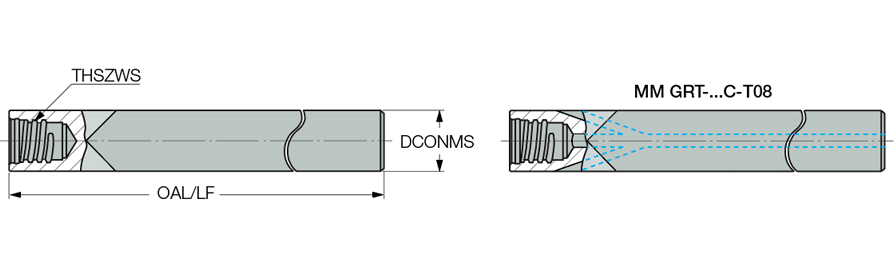

| Connection Thread Nominal Size Workpiece Side (THSZWS) | T06 | Tool Type | Cylindrical Shanks |
| Connection Diameter Machine Side (DCONMS) | 0.394″ | Weight of Item (WT) | 0.23 Lbs |
| Material | Carbide | Measurement Type | Inch |
| Overall Length (OAL) | 3.937″ | Body Material | Carbide |
| Body Length Maximum (LBX) | 2.52″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Coolant Supply Property (CSP) | External |
Product Features
| Family Description | Mount Slitting and Grooving Interchangeable Milling Heads | Country of Origin | Israel |
| Remarks | MM GRT... shanks serve mainly for MM GRIT... slitting heads. When mounting other types of milling heads, do not exceed maximum specified depth of cut for the particular milling head. Since the shank diameter is not relieved, it may touch a wall on the workpiece being machined. Use carbide shanks for groove milling heads and for applications requiring high rigidity and processes. |
