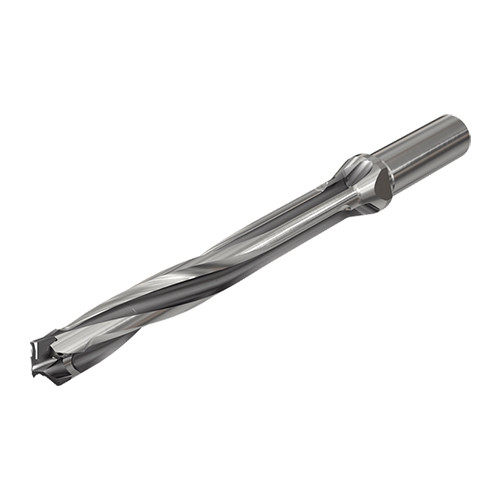

D3N 0630-504-075R-8D
Drill; 0.63″ Dia. × 0.63″ Min. Dia. × 0.665″ Max. Dia. × 3/4″ Shank Dia. × 8.317″ OAL × 5.175″ LU ; Series STAW

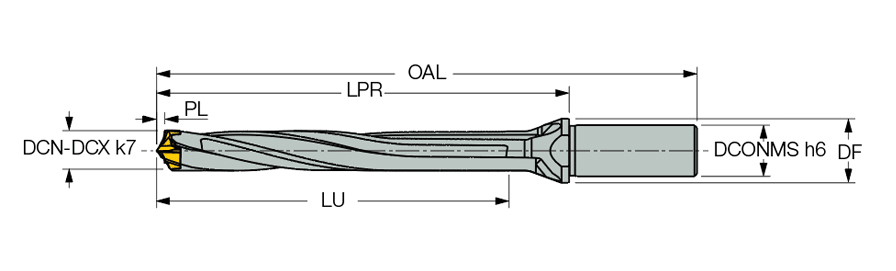

| Cutting Diameter (DC) | 0.63″ | Cutting Item Count (CICT) | 1 |
| Usable Length (LU) | 5.175″ | Measurement Type | Inch |
| Shank Type | Round | Master Insert Identification (MIID) | H3P 160-IQ |
| Application | | Drilling | | Point Length (PL) | 0.135″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Series/List # | STAW |
| Insert Seat Size Code (SSC) | 16 | Angle | 140 Degrees |
| Cutting Diameter Minimum (DCN) | 0.63″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.665″ | Flange Diameter (DF) | 0.984″ |
| Protruding Length (LPR) | 6.35″ | Decimal Equivalent | 0.63″ |
| Overall Length (OAL) | 8.317″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Coolant Supply Property (CSP) | Coolant Thru | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Exchangeable head 3 flute drills with internal coolant holes and round shank. Drilling Depth 8xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
