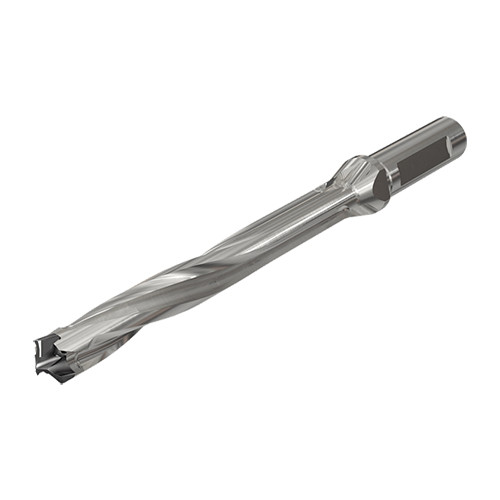

D3N 140-112-16A-8D
Exchangeable head 3 flute drills with coolant holes and one flat shank, drilling depth 8xD
| Cutting Diameter (DC) | 14 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 115.1 mm | Cutting Item Count (CICT) | 1 |
| Application | | Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Master Insert Identification (MIID) | H3P 140IQ |
| Insert Seat Size Code (SSC) | 14 | Point Length (PL) | 3.1 mm |
| Cutting Diameter Minimum (DCN) | 14 mm | Series/List # | STAW |
| Cutting Diameter Maximum (DCX) | 14.4 mm | Angle | 140 Degrees |
| Protruding Length (LPR) | 141.1 mm | Body Material | Steel |
| Overall Length (OAL) | 189.1 mm | Flange Diameter (DF) | 20 mm |
Product Features
| Family Description | Exchangeable head 3 flute drills with coolant holes and one flat shank, drilling depth 8xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
0.509
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
