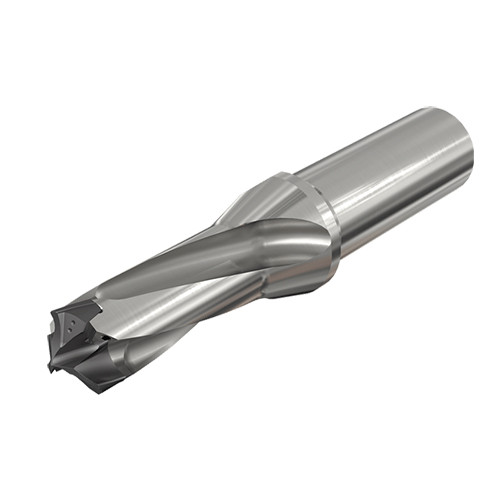

D3N 150-023-20R-1.5D
Exchangeable head 3 flute drills with internal coolant holes and round shank, drilling depth 1.5xD
| Cutting Diameter (DC) | 15 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 25.97 mm | Cutting Item Count (CICT) | 1 |
| Application | | Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Master Insert Identification (MIID) | H3P 150 |
| Insert Seat Size Code (SSC) | 15 | Point Length (PL) | 3.47 mm |
| Cutting Diameter Minimum (DCN) | 15 mm | Series/List # | STAW |
| Cutting Diameter Maximum (DCX) | 15.9 mm | Angle | 140 Degrees |
| Protruding Length (LPR) | 53.7 mm | Body Material | Steel |
| Overall Length (OAL) | 103.66 mm | Flange Diameter (DF) | 25 mm |
| Shank Length (LS) | 50 mm | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Exchangeable head 3 flute drills with internal coolant holes and round shank, drilling depth 1.5xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
0.478
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
