D3N 0551-165-063A-3D

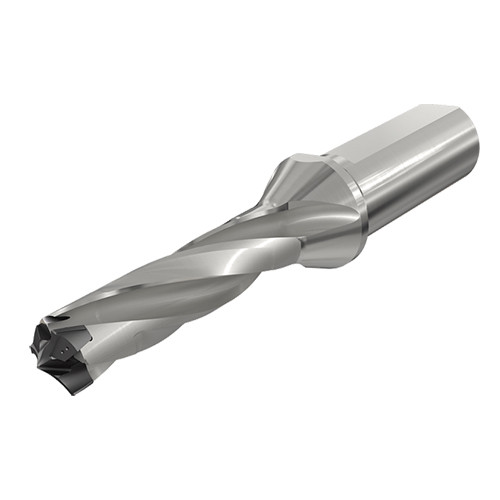

Exchangeable head 3 flute drills with coolant holes and one flat shank, drilling depth 3xD

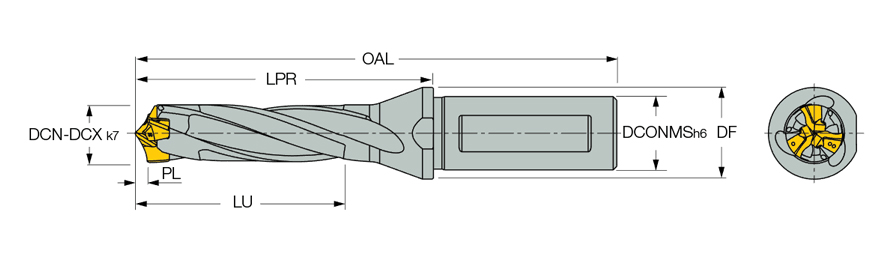

| Cutting Diameter (DC) | 0.551″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 1.776″ | Cutting Item Count (CICT) | 1 |
| Application | | Drilling | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Master Insert Identification (MIID) | H3P 140-IQ |
| Insert Seat Size Code (SSC) | 14 | Point Length (PL) | 0.1221″ |
| Cutting Diameter Minimum (DCN) | 0.551″ | Series/List # | STAW |
| Cutting Diameter Maximum (DCX) | 0.567″ | Angle | 140 Degrees |
| Protruding Length (LPR) | 2.8″ | Body Material | Steel |
| Functional Length (LF) | 2.679″ | Flange Diameter (DF) | 0.79″ |
| Overall Length (OAL) | 4.689″ | Decimal Equivalent | 0.551″ |
| Shank Length (LS) | 1.89″ |
Product Features
| Family Description | Exchangeable head 3 flute drills with coolant holes and one flat shank, drilling depth 3xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
0.359
