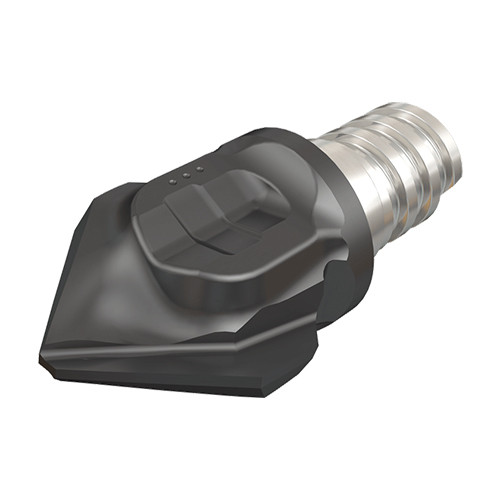

MM HDF120-090-2T06 IC908
Interchangeable 2 flute solid carbide heads for upper and bottom chamfering

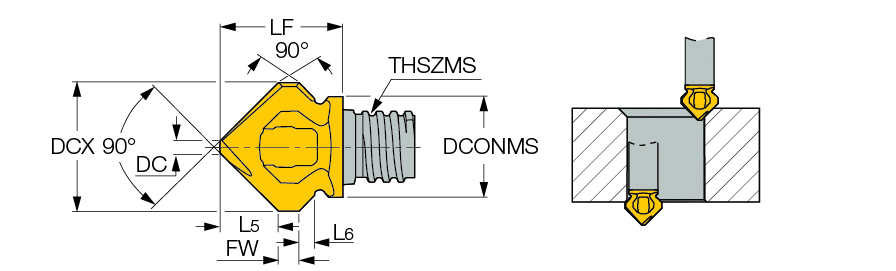

| Application | | Chamfering & Bottom Deburring | Countersinking | | Profile Angle (PRFA) | 90 Degrees |
| Cutting Diameter (DC) | 0.465″ | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 | End Shape | Chamfer|Countersink |
| Connection Diameter Machine Side (DCONMS) | 0.366″ | Tool Type | Solid chamfering endmills |
| Functional Length (LF) | 0.441″ | Body Material | Carbide |
| Overall Length (OAL) | 0.703″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Grade | IC908 | Connection Code Machine Side (CCMS) | MultiMaster |
| Coating | TiAlN |
Product Features
| Family Description | Interchangeable 2 flute solid carbide heads for upper and bottom chamfering | Country of Origin | Israel |
| Remarks | For tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Package Length
.70000
Package Width
.46000
Package Height
.36000
Package Weight
0.036
