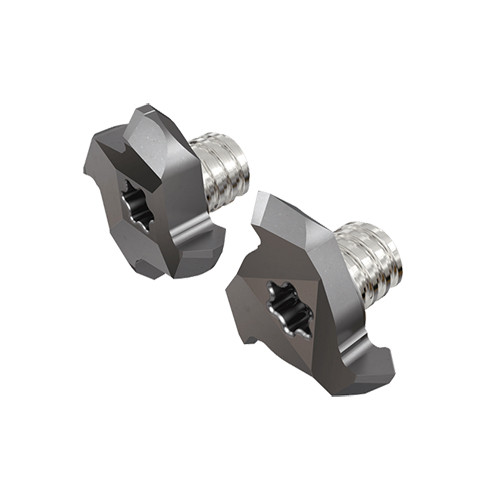

MM GRIT18K-45A-3T6 IC908
MULTI-MASTER, interchangeable solid carbide small diameter 45° chamfering heads. "P" suffix: positive geometry for soft and gummy materials. "K" suffix: to be used for general steel machining.

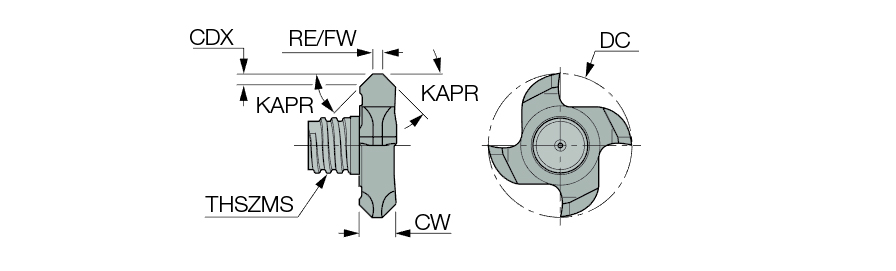

| Application | | Chamfering & Bottom Deburring | Slanted Shoulder & Chamfer | | Functional Length (LF) | 0″ |
| Cutting Diameter (DC) | 0.697″ | Overall Length (OAL) | 0″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | IC908 |
| Flute Count (NOF) | 3 | Coating | TiAlN |
| Corner Radius (RE) | 0.0039″ | Profile Angle (PRFA) | 0 Degrees |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Cutting Depth Maximum (CDX) | 0.055″ | Measurement Type | Inch |
| Cutting Diameter Maximum (DCX) | 0″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0″ | Body Material | Carbide |
| Cutting Width (CW) | 0.137″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Connection Diameter Machine Side (DCONMS) | 0″ | Connection Code Machine Side (CCMS) | MultiMaster |
Product Features
| Family Description | MULTI-MASTER, interchangeable solid carbide small diameter 45° chamfering heads. "P" suffix: positive geometry for soft and gummy materials. "K" suffix: to be used for general steel machining. | Country of Origin | Israel |
| Remarks | P-TYPE - Positive geometry for soft and gummy materials. K-Type - For general steel machining. Modification options on request. Do not apply lubricant to the threaded connection. For clamping instructions, click on More Info |
Shipping Info
LocalField10
0
Package Weight
0.015
