C5 EM10X55

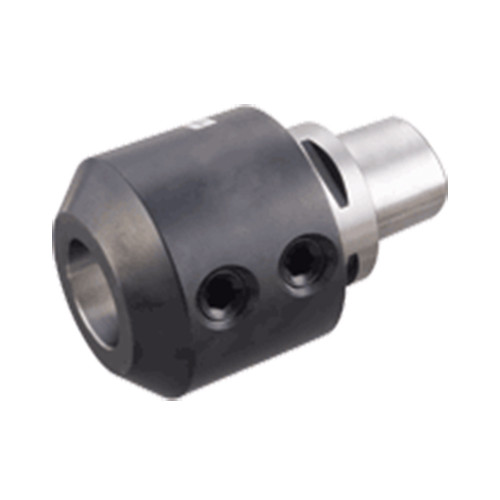

DIN 1835 form B Weldon endmill holders with CAMFIX (ISO 26623-1) exchangeable tapered shanks.

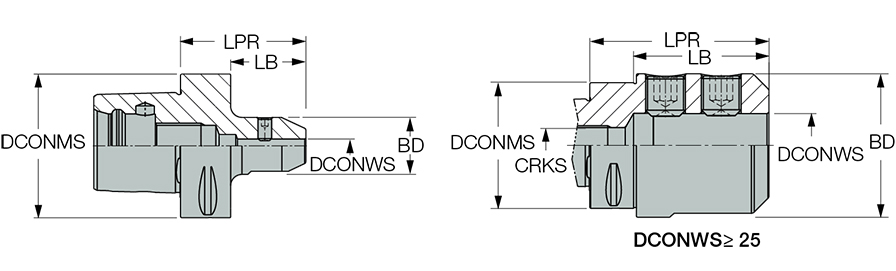

| Connection Size (CSI) | R8 | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Workpiece Side (DCONWS) | 10 mm | Measurement Type | Metric |
| Body Diameter (BD) | 35 mm | Shank Size (SS) | 50 |
| Protruding Length (LPR) | 55 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Overall Length (OAL) | 85 mm | Body Material | Steel |
Product Features
| Family Description | DIN 1835 form B Weldon endmill holders with CAMFIX (ISO 26623-1) exchangeable tapered shanks. | Country of Origin | Israel |
Shipping Info
Package Weight
1.537
