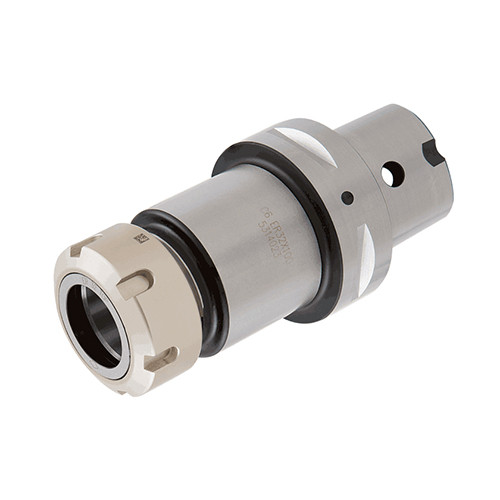

C8 ER32X100
DIN 6499 ER collet chucks with CAMFIX (ISO 26623-1) exchangeable tapered shanks.

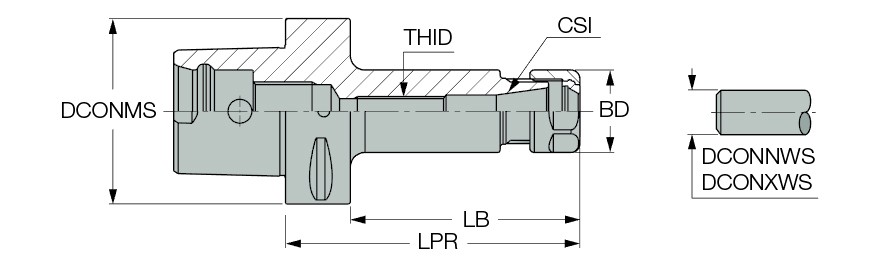

| Shank Size (SS) | 80 | Coolant Supply Property (CSP) | Through Hole |
| Connection Size (CSI) | ER32 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.079″ |
| Body Diameter (BD) | 1.968″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.787″ |
| Protruding Length (LPR) | 3.937″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3.15″ | Body Material | Steel |
| Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
Product Features
| Family Description | DIN 6499 ER collet chucks with CAMFIX (ISO 26623-1) exchangeable tapered shanks. | Country of Origin | Israel |
Shipping Info
Package Weight
5.437
