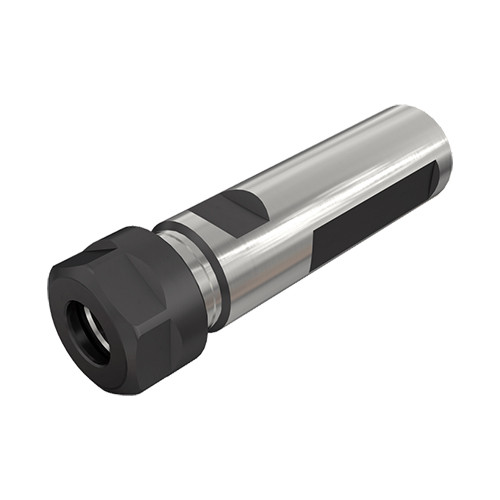

ST 50X 80 ER50 F
DIN 6499 ER collet chucks with straight shanks
| Shank Size (SS) | 50 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 10 mm |

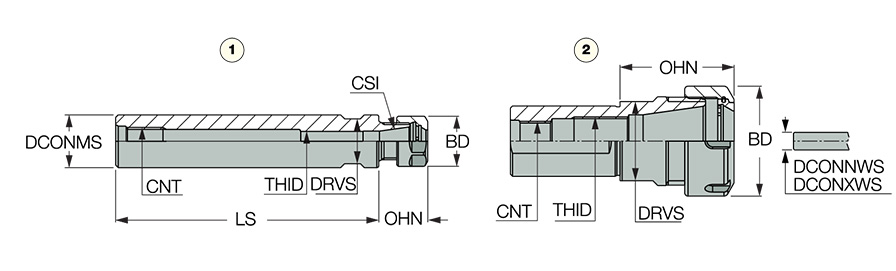

| Connection Size (CSI) | ER50 | Figure | 2 |
| Protruding Length (LPR) | 77 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Drive Size (DRVS) | 58 mm |
| Tool Type | Cylindrical Shanks | Body Material | Steel |
| Coolant Supply Property (CSP) | Through Hole |
Product Features
| Family Description | DIN 6499 ER collet chucks with straight shanks | Country of Origin | Israel |
| Remarks | F suffix indicates a flat on the shank |
Shipping Info
Package Length
6.75000
Package Width
4.00000
Package Height
4.00000
Package Weight
5.022
