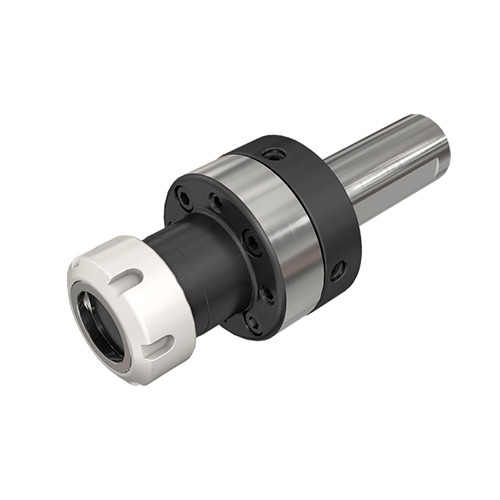

ADJ ST1-1/4 D2.756 ER32
DIN 6499 ER collet chucks with center alignment and cylindrical shanks with a clamping flat.

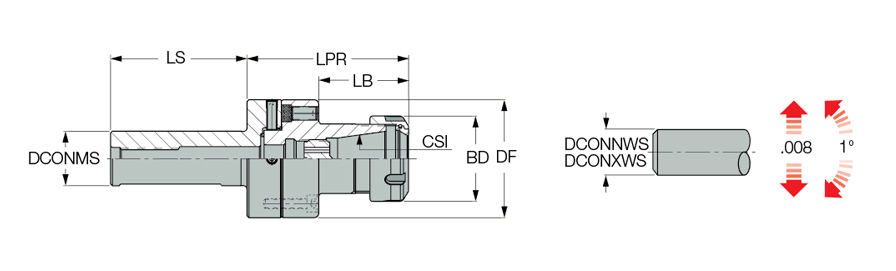

| Shank Size (SS) | 1.25 | Coolant Supply Property (CSP) | Through Hole |
| Connection Size (CSI) | ER32 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.08″ |
| Body Diameter (BD) | 1.969″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.789″ |
| Protruding Length (LPR) | 3.72″ | Measurement Type | Inch |
| Shank Length (LS) | 3.15″ | Body Material | Steel |
| Tool Type | Cylindrical Shanks |
Product Features
| Family Description | DIN 6499 ER collet chucks with center alignment and cylindrical shanks with a clamping flat. | Country of Origin | Israel |

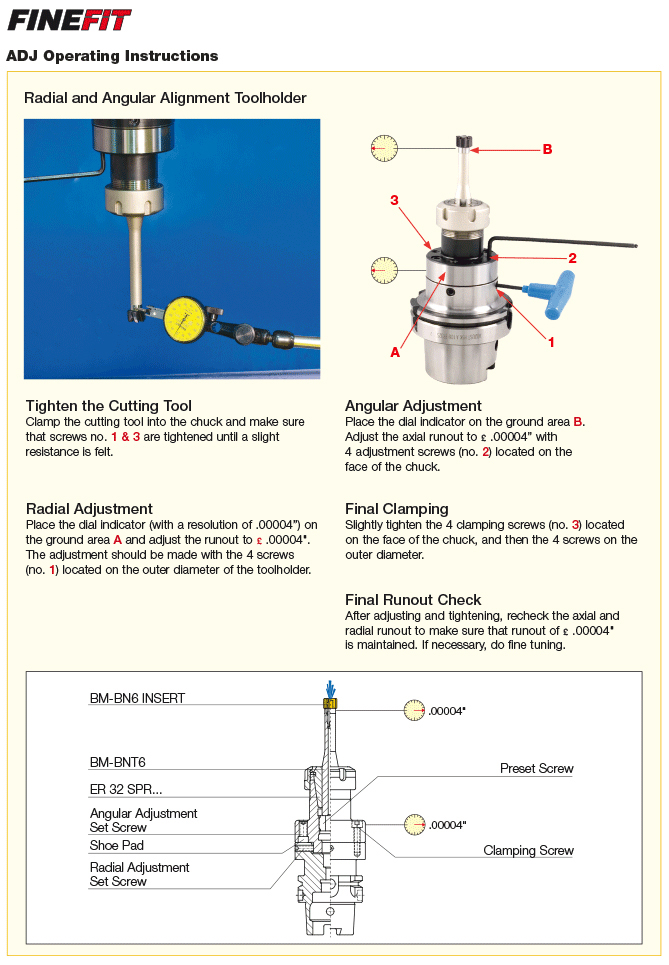

| Remarks | Radial adjustment .008 Angular adjustment 1° |
