ST 22X 75 ER16 MF D

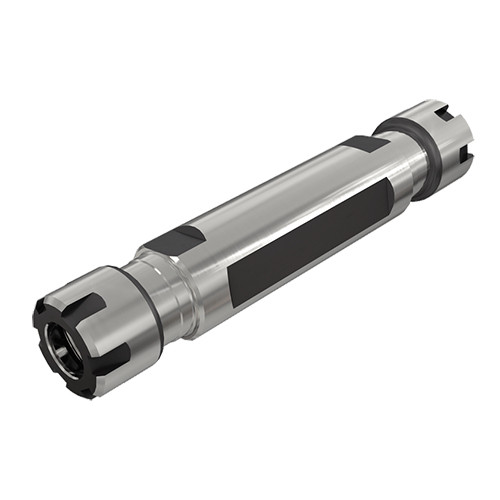

Double-ended mini collets with cylindrical shanks and a clamping flat.

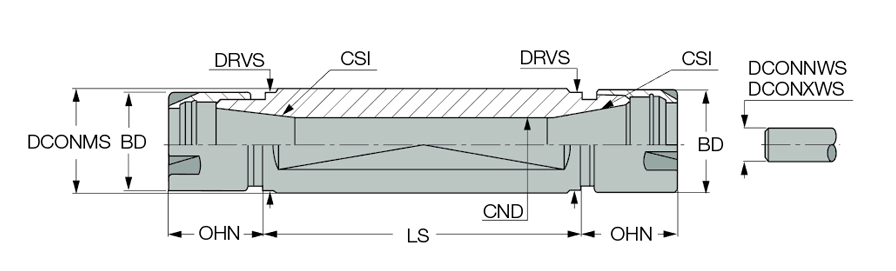

| Shank Size (SS) | 22 | Coolant Supply Property (CSP) | Through Hole |
| Connection Size (CSI) | ER16 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.5 mm |
| Body Diameter (BD) | 22 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 10 mm |
| Protruding Length (LPR) | 65.5 mm | Measurement Type | Metric |
| Shank Length (LS) | 75 mm | Drive Size (DRVS) | 19 mm |
| Tool Type | Cylindrical Shanks | Body Material | Steel |
Product Features
| Family Description | Double-ended mini collets with cylindrical shanks and a clamping flat. | Country of Origin | Israel |
Shipping Info
Package Weight
0.578
