ST3/4X6.000 ER11
DIN 6499 ER collet chucks with straight shanks.

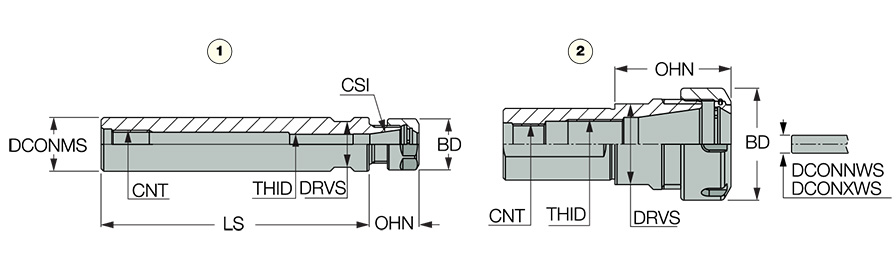

| Shank Size (SS) | 3/4 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.022″ |
| Connection Size (CSI) | ER11 | Figure | 1 |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Measurement Type | Inch |
| Tool Type | Cylindrical Shanks | Drive Size (DRVS) | 0.669″ |
| Style | ER11 | Body Material | Steel |
| Coolant Supply Property (CSP) | Through Hole |
Product Features
| Family Description | DIN 6499 ER collet chucks with straight shanks. | Country of Origin | Israel |
| Remarks | F suffix indicates a flat on the shank. |
