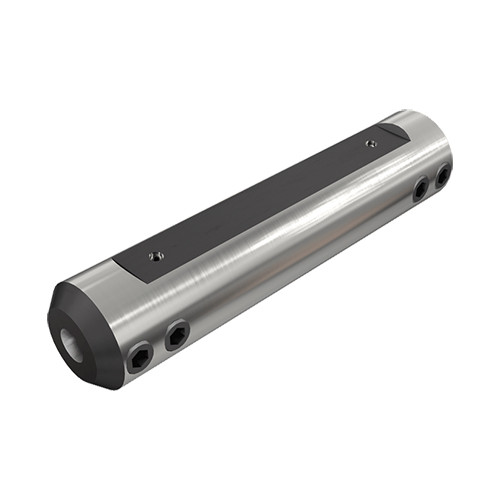

PICCO 16-4-5
Holders for PICCO-CUT inserts and small diameter boring bars.

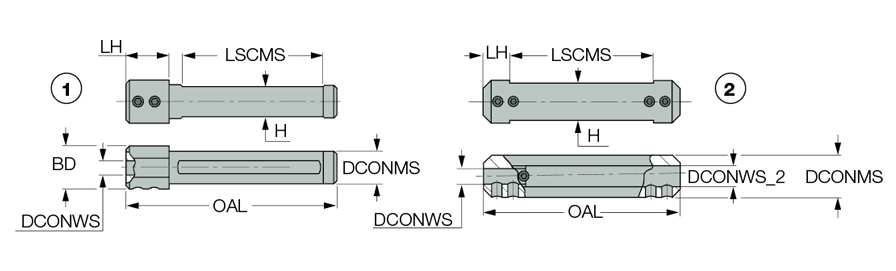

| Connection Diameter Machine Side (DCONMS) | 16 mm | Connection Diameter Workpiece Side (DCONWS) | 4 mm |
| Overall Length (OAL) | 75 mm | Tool Type | Round Shanks |
| Head Length (LH) | 10 mm | Body Material | Steel |
| Shank Height (H) | 14 mm | Measurement Type | Metric |
| Shank Type | Round Shank w/3 Flats |
Product Features
| Family Description | Holders for PICCO-CUT inserts and small diameter boring bars. | Country of Origin | Israel |
| Remarks | Holders are suitable for right- and left-hand inserts, and boring bars |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.249
