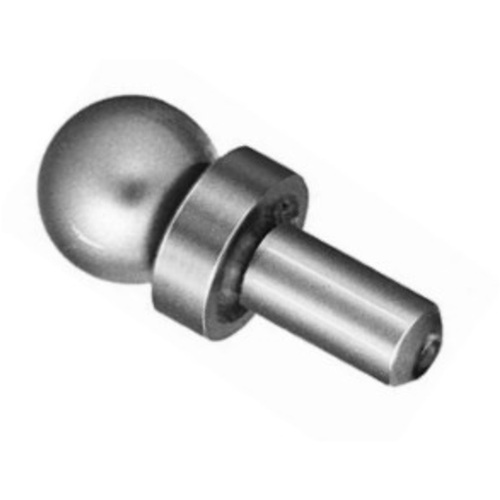

3/8″ × 0.750″ × 0.1872″ Checking Ball with Shoulder
| Type | Checking Ball | Ball Diameter | 0.3750″ |
| Material | Stainless Steel | Shank Diameter | 0.1872″ |
| Model No | 29012 | Shoulder Diameter | 3/8″ |
| Center of Ball to End | 0.7500″ | Center of Ball to Under Shoulder | 0.3000″ |
Product Features
| Remarks | •Material: Type 440-C Stainless Steel hardened to Rc 58-62. •Eccentricity, ball to shank, 0.0002 T.I.R. maximum. •Two Piece Welded Construction. •Part No. 29010 supplied with tungsten carbide ball only with hardness Ra 91.5 - 92.5. •Available in FixtureProTM Design Software. •Part: 29021 has a 6-32 UNC 2B Tapped Shank. •The weld between the ball and the shank is made so that the ball will drop off if subjected to unusually heavy leteral forces. This prevents setup and inspection errors that might occur do to accidental bending of the shank. | Country of Origin | USA |
Shipping Info
Package Weight
0.01
